BT-01

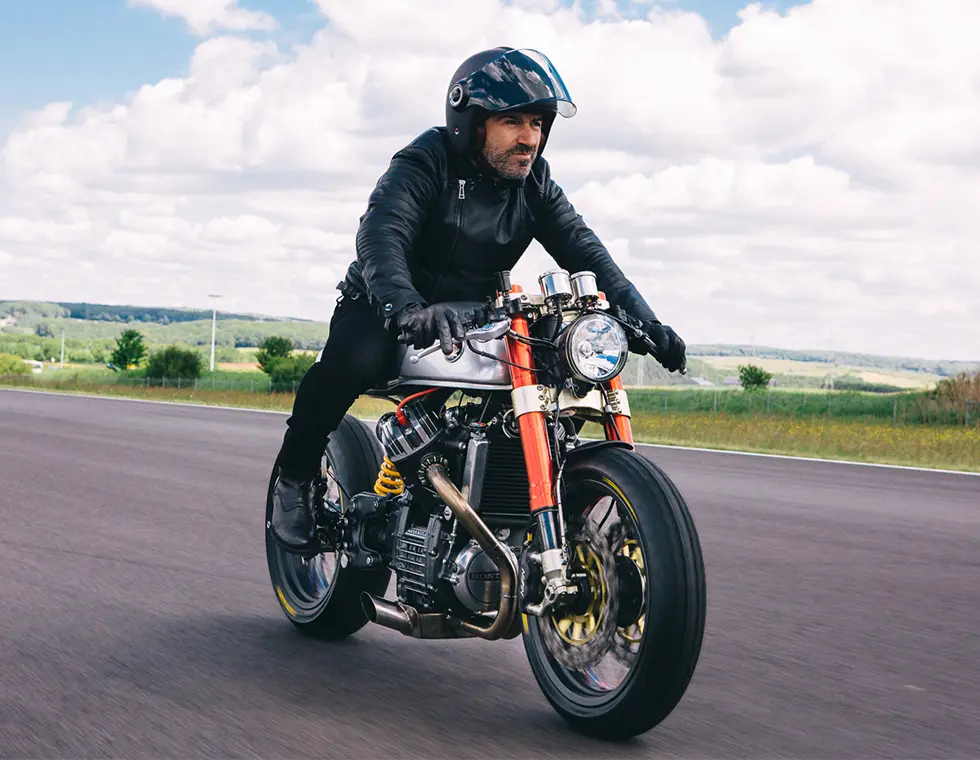

Blacktrack’s first cafe racer, the BT-01, based on a Honda CX500.
In 2015, Sacha Lakic found it dismantled in a friend’s garage. The unique engine configuration immediately captivated him, and he set himself the goal of transforming this machine into a stylish, modernised café racer.
It came 2nd in Bike EXIF’s Top 10 cafe racers of 2015 list.
The Honda CX500 was already popular with bikers for its robustness, but Sacha Lakic was attracted by its unique engine layout and chassis design, which give a lightweight look ideal for a café racer. What’s more, its V-twin engine was full of character, with a pleasant sound that echoed the golden age of sports bikes.
For its third anniversary, Blacktrack is presenting the BT-01 Carbon, a special version of its original Café Racer. This model retains the features of the original BT-01, but features a carbon-fibre body painted in BlackTrack’s signature colours: red and black.
The fuel tank
Very similar to the original shape of the CX500, the BT-01’s fuel tank has a slight forward slope on the cafe racer that sets it apart.
The seat
The seat features non-slip padding and cinnabar-red stitching that contrasts with the pure black of the seat leather. What’s more, it reveals the bike’s raw, unadorned bodywork – a true work of engineering.
The clip-on handlebars
The clip-on handlebars and controls, aligned with the single seat, add a sporty touch to the BT-01. These details give you total control and an unrivalled driving experience.
Minimal
Minimal
finishing touches
finishing touches
Featuring discreet lighting, side-by-side gauges and a hand-crafted exhaust system, every element is carefully painted, polished or powder-coated, with touches of Blacktrack Red brought to the smallest details.
Lighter
For performance enthusiasts, the BT-01 offers an incomparable driving experience. It is significantly lighter than its Honda base, which means maximum driving pleasure while retaining a sleek design.
Want to know more ?
Donor
HONDA CX500
Engine
Four-stroke V-twin
Capacity
497 cc / 30.3 cu-in
Power
55 bhp / 41 kw
at 9000 rpm
Wheelbase
1400 mm Overall length: 2000 mm
Dry weight
152 kg / 341 lbs
Total weight
172 kg / 368 lbs
Fuel capacity
17 litres / 4.9 US gal
Donor : Honda CX500
Engine : Four stroke, longitudinal OHV 80° V-twin, 4 valves per cylinder, liquid cooling
Capacity : 497 cc / 30.3 cu-in
Bore and Stroke : 78 mm X 52 mm – 3.1 X 2.0 inches
Torque : 50nm / 37lb-ft at 7000 rpm
Power : 55hp / 41 kw at 9000 rpm
Fuel control : Overhead valves
Cooling system : liquid
Starter : Electric
Clutch : Wet multi-plate, 5 speed
Final drive : shaft
Exhaust system : Custom built 2 in 1 inox system
Full engine control and gear box check
Set of two brand new 39 mm Mikuni carbs
Full engine balance : crankshaft, rods and pistons
New guides and valves seats
New timing chain and tensioner
Engine and rocker boxes high standard polishing
Brand new set of bearings, gaskets and bushes
Complete set of titanium fasteners and washers for engine and frame
Wheelbase : 1400 mm Overall length : 2000 mm
Seat height : 760 mm Width : 700 mm
Dry weight (tank empty) : 152 kg / 341 lbs Total weight (tank full) : 172 kg / 368 lbs
Fuel capacity : 17 liters / 4.9 US gal
Carbon gas tank with alloy cnc gas cap
Carbon tail unit with solo seat
Speedometer and Tachometer : KOSO
CNC custom made aluminium yokes
Tubular steel frame, new custom reinforced tubular steel subframe
Powder coating of frame and swing arm
Custom – machined triple clamps
Front fork : Öhlins FGRT 43 mm gold
Rear monoshock : Öhlins TTX 36
Front dual disc brakes : Brembo GP Racing / PR19
Front disc diameter : 320 mm
Rear disc diameter : 220 mm
Rear brake : Accossato
Wire-spoked rims
Front : 3.5 X 17 tubeless rim
Rear : 4.25 X 17 tubeless rim, custom cnc alloy hub
Dunlop Sportmax Mutant Tubeless
Front : 120 / 70ZR17
Rear : 150 / 60ZR17
